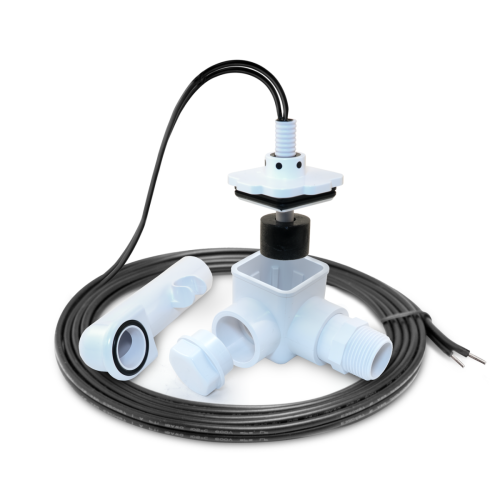

Safe-T-Switch SSL (Elbow)
Safe-T-Switch SSL (Elbow) offers effective overflow protection for tight spaces with its 90-degree design. It detects leaks and shuts off the system to prevent water damage. Features an adjustable float level, code-compliant cleanout, and compatibility with sloped installations (up to 20°). Includes a cleanout tool, threaded adapter, and plug.
Features
- COMPACT DESIGN: Ideal for tight spaces and closet applications, solving installation challenges in limited areas with its 90-degree design.
- RELIABILITY: Automatically shuts off the HVAC system to prevent water damage, providing dependable overflow leak protection.
- ADJUSTABLE: Precision and flexibility in setup with an adjustable ratcheting float level and a code-compliant inline cleanout for easy maintenance.
- VERSATILE INSTALLATION: Compatible with primary or auxiliary outlets on the primary drain pan, accommodating sloped installations up to 20 degrees.
- COMPLETE ACCESSORY PACKAGE: Includes a cleanout tool, threaded adapter, and plug, all neatly window-box packaged for convenience.
| Case Weight (lbs) : | 13.00 |
|---|---|
| Case Height (inch) : | 6.02 |
| Case Length (inch) : | 11.42 |
| Case Width (inch) : | 21.46 |
| Brand : | Safe-T-Switch |
| Recommended Use : | For primary drain pan primary or auxiliary outlet |
| UPC : | 021449970952 |
| Interleaved : | 10021449970959 |
| Color : | WHITE |
| Application : | To detect leaks for closet applications in tight or limited spaces for HVAC overflow protection. The switch will shut off the HVAC system to prevent water damage; adjustable ratcheting float level with code-compliant inline cleanout. |
| Fin/Blade Spacing : | .000 |
| Fin Degree : | 0 |
| Screw Holes : | 0 |
Condensate overflow switches and cleanout devices
Rectorseal's Safe-T-Switch is a testament to our dedication to reliability and innovation. The patented offering is designed to ensure peak performance, earning the reputation for effectively managing overflow detection and helping contractors prevent water damage issues. As the first product of its kind, we have continued to refine and perfect the Safe-T-Switch over the years, offering a range of models designed for various applications. Tested to UL 508, this offering includes IMC code 307.2.3.4 & 307.2.5 compliant in-line cleanouts as well as plenum-rated options.
Safe-T-Switch VERSATILITY
Mechanical
Detects water level via mechanical float, manually adjustable to the preferred sensitivity height inside the switch or pan
Breaks the circuit through the rising of the float
The most cost effective way to protect against condensate water damage
Electronic
Electronically detects water overflow events through conductivity
Software logic of microcontroller determines when to break the circuit
Compact sensors are as durable and reliable, but are smaller than mechanical switches
