Safe-T-Switch SSW

Secondary drain pan shut-off switch, Safe-T-Switch Model SSW, detects clogged A/C condensate drains and shuts off system to prevent water damage.


Features
  • Sensor connects to indoor unit
  • Onboard LED Indicator
  • Power supply – 24VAC
  • Switching Capacity: 24 VAC/DC, 5A, Normally Closed (NC); 24VAC/DC, 1A, Normally Open (NO)

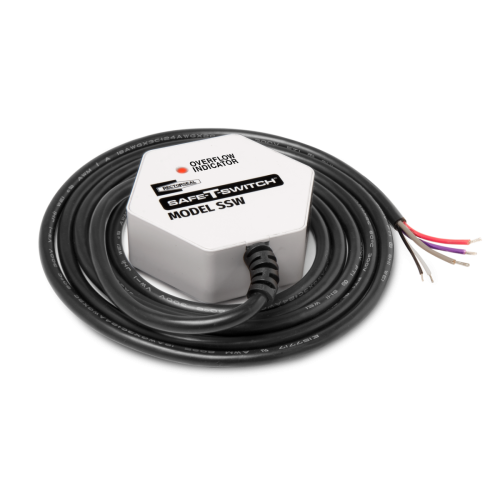

main product photo
With no moving parts to break or become clogged, the patent-pending SSW water sensor is placed directly into a metal or plastic secondary drain pan or on a floor. The logic circuit of the SSW continuously samples the sensor probes for the accumulation of water and determines if the presence of water is transient or permanent. When proprietary sensors detect as little as a 1/16-inch level of permanent water, the SSW water sensor automatically shuts the HVAC system down. A red LED on the top cover of the unit indicates that the SSW has been activated. After the water has cleared, the SSW water sensor will automatically reset.
Documents
Additional Information
More Information
Case Weight (lbs) : 19.00
Case Height (inch) : 5.71
Case Length (inch) : 15.75
Case Width (inch) : 10.63
Brand : Safe-T-Switch
UPC : 021449970921
Interleaved : 10021449970928
Color : WHITE
Application : With no moving parts to break or become clogged, the patent-pending SSW water sensor is placed directly into a metal or plastic secondary drain pan or on a floor. The logic circuit of the SSW continuously samples the sensor probes for the accumulation of
Fin/Blade Spacing : .000
Fin Degree : 0
Screw Holes : 0
You Might Like

Condensate overflow switches and cleanout devices

Rectorseal's Safe-T-Switch is a testament to our dedication to reliability and innovation. The patented offering is designed to ensure peak performance, earning the reputation for effectively managing overflow detection and helping contractors prevent water damage issues. As the first product of its kind, we have continued to refine and perfect the Safe-T-Switch over the years, offering a range of models designed for various applications. Tested to UL 508, this offering includes IMC code 307.2.3.4 & 307.2.5 compliant in-line cleanouts as well as plenum-rated options.

Safe-T-Switch VERSATILITY

Mechanical

Detects water level via mechanical float, manually adjustable to the preferred sensitivity height inside the switch or pan

Breaks the circuit through the rising of the float

The most cost effective way to protect against condensate water damage

Electronic

Electronically detects water overflow events through conductivity

Software logic of microcontroller determines when to break the circuit

Compact sensors are as durable and reliable, but are smaller than mechanical switches
